2JB7|3AC High Pressure Electric Air Side Channel Blower

E-mail: sales@jinhulong.com

Phone: +86 15757686666

Get A Quote

Also Like

Product Description

Detail display

Product Description

1.The motor ofthe high-pressure blower is rated ip55 for protection and class Finsulation level heat resistant up to 155"c, which extends its service life.
2.100% oil-free and water-free compression, air clean and sanitary.
3. All products adopt dual-frequency 50Hz/60Hz, wide votage desien,covering and meeting the voltage levels worldwide, enhancing stability.
4.The mpeler and pump body are both castby high qualtyaluminumaloy molds,which improves the durabity,stabily,and ruggednes ofthe product.This ensures a highmprecision manufac turing process and an attractive appearance.
5.Germany and Japan import high-precision CNc machine tools for procesing,and strict performance testing and experiments areconducted to ensure excelentproduc performance.
6. Good sealing performance, low noise, maintenance-free use, low mechanical wear, and long service life.

Product Characteristics

The 2JB7|3AC High Pressure Electric Air Side Channel Blower stands as a testament to advanced engineering and performance in the realm of air handling systems. This blower, meticulously designed and crafted to meet the demanding needs of various industrial applications, combines efficiency, reliability, and durability in a compact and robust package.

Performance Excellence:

The 2JB7|3AC blower boasts exceptional performance, delivering a reliable and consistent airflow in high-pressure environments. Its robust design ensures long-term durability and stability, making it a trusted choice for industrial processes that demand precision and efficiency.

Power Options:

With a power range of 2.2KW to 8.6KW, users have the flexibility to select the blower model that aligns with their operational needs. This feature allows for customization based on the specific requirements of different applications, providing a tailored solution for various industrial settings.

Versatility Across Industries:

This blower is engineered to cater to the diverse needs of multiple industries, including but not limited to manufacturing, wastewater treatment, pneumatic conveying, and more. Its adaptability makes it an invaluable asset for processes that demand a high-pressure air supply for performance.

Reliable Frequency Options:

The 2JB7|3AC blower supports both 50Hz and 60Hz frequencies, enhancing its usability across regions with different power standards. This adaptability ensures seamless integration into various international operations, making it a versatile choice for businesses with a global footprint.

Advanced Motor Technology:

Equipped with advanced motor technology, this blower delivers not only impressive power but also energy efficiency. The motor is designed for performance, striking a balance between power and sustainability, contributing to reduced energy consumption and operational costs.

Durable Construction:

Built with durability in mind, the 2JB7|3AC blower features a rugged construction that withstands the rigors of industrial environments. The materials used in its manufacturing are carefully selected to ensure longevity, minimizing downtime and maintenance costs.

Easy Maintenance:

The design of this side channel blower facilitates easy maintenance, reducing the need for extended downtime during servicing. Accessible components and user-friendly features make routine maintenance tasks straightforward, allowing businesses to focus on their operations without unnecessary interruptions.

Quiet Operation:

In addition to its outstanding performance, the 2JB7|3AC blower is designed for quiet operation. This feature is particularly important in industrial settings where noise reduction is a priority, creating a conducive work environment while ensuring compliance with occupational health and safety standards.

Compliance with Standards:

This blower adheres to industry standards and regulations, ensuring that it meets the necessary safety and performance criteria. Users can trust in the reliability and safety of the 2JB7|3AC blower for their industrial processes.

Applications:

The versatility of the 2JB7|3AC blower extends to a wide array of applications, including pneumatic conveying systems, vacuum packaging, wastewater treatment, and more. Its ability to deliver high-pressure air makes it an ideal choice for processes that demand precision and efficiency.

In conclusion, the 2JB7|3AC High Pressure Electric Air Side Channel Blower stands out as a reliable and versatile solution for industries requiring robust performance in high-pressure environments. With a range of power options, adaptability to different frequencies, and a focus on durability, this blower is well-suited for various applications, contributing to the efficiency and success of industrial operations worldwide.

Model	Single	Frequency	Output 1	Voltage	Current	Max Airflow	Rated Vacuum	Rated Compress	Noises	Weight
Model	Double	HZ	KW	V	A	m³/h	mbar	mbar	dB(A)	kg
2JB710-H16	single	50	2.2	220-240∆/345-415Y	9.7∆/5.6Y	318	-210	200	69	30
2JB710-H16	single	60	2.55	220-275∆/380-480Y	10.3∆/6.0Y	376	-210	200	72	30
2JB710-H26	single	50	3	220-240∆/345-415Y	12.5∆/7.2Y	318	-270	290	69	36
2JB710-H26	single	60	3.45	220-275∆/380-480Y	12.6∆/7.3Y	376	-250	230	72	36
2JB710-H37	single	50	4	220-240∆/345-415Y	9.0∆/5.2Y	318	-290	330	69	40
2JB710-H37	single	60	4.6	220-275∆/380-480Y	9.0∆/5.2Y	376	-330	330	72	40
2JB710-H47	single	50	4.3	220-240∆/345-415Y	9.5∆/5.5Y	318	-295	335	69	43
2JB710-H47	single	60	4.8	220-275∆/380-480Y	9.5∆/5.5Y	376	-335	335	72	43
2JB720-H16	pair	50	2.2	220-240∆/345-415Y	9.7∆/5.6Y	320	-220	210	73	43
2JB720-H16	pair	60	2.55	220-275∆/380-480Y	10.3∆/6.0Y	380	-170	150	76	43
2JB720-H26	pair	50	3	220-240∆/345-415Y	12.5∆/7.2Y	320	-280	260	73	48
2JB720-H26	pair	60	3.45	220-275∆/380-480Y	12.6∆/7.3Y	380	-230	200	76	48
2JB720-H27	pair	50	4	220-240∆/345-415Y	9.0∆/5.2Y	320	-355	375	73	53
2JB720-H27	pair	60	4.6	220-275∆/380-480Y	9.4∆/5.2Y	385	-345	315	76	53
2JB720-H37	pair	50	4.3	220-240∆/345-415Y	10∆/5.2Y	320	-360	380	73	54
2JB720-H37	pair	60	4.8	220-275∆/380-480Y	10.4∆/6.0Y	380	-350	320	76	54
2JB720-H47	pair	50	5.5	220-240∆/345-415Y	13.3∆/7.7Y	320	-440	500	73	66
2JB720-H47	pair	60	6.3	220-275∆/380-480Y	13.3∆/7.7Y	380	-440	500	76	66
2JB720-H57	pair	50	7.5	220-240∆/345-415Y	16.7∆/9.6Y	320	-440	570	73	73
2JB720-H57	pair	60	8.6	220-275∆/380-480Y	17.3∆/10.0Y	380	-460	630	76	73
2JB730-H16	pair	50	2.2	220-240∆/345-415Y	9.7∆/5.6Y	420	-170	170	70	32
2JB730-H16	pair	60	2.55	220-275∆/380-480Y	10.3∆/6.0Y	500	-160	150	73	32
2JB730-H26	single	50	3	220-240∆/345-415Y	12.5∆/7.2Y	420	-220	200	70	37
2JB730-H26	single	60	3.45	220-275∆/380-480Y	12.6∆/7.3Y	500	-200	190	73	37
2JB730-H37	single	50	4	220-240∆/345-415Y	9.0∆/5.2Y	420	-260	310	70	43
2JB730-H37	single	60	4.6	220-275∆/380-480Y	9.0∆/5.2Y	500	-260	280	73	43
2JB740-H37	single	50	4	220-240∆/345-415Y	9.0∆/5.2Y	500	-150	140	74	54
2JB740-H37	single	60	4.6	220-275∆/380-480Y	9.0∆/5.2Y	600	-100	90	78	54
2JB740-H47	pair	50	5.5	220-240∆/345-415Y	13.3∆/7.7Y	500	-240	260	74	69
2JB740-H47	pair	60	6.3	220-275∆/380-480Y	13.3∆/7.7Y	600	-210	200	78	69
2JB740-H57	pair	50	7.5	220-240∆/345-415Y	16.7∆/9.6Y	500	-240	320	74	75
2JB740-H57	pair	60	8.6	220-275∆/380-480Y	17.3∆/10.0Y	600	-270	300	78	75
2JB790-H26	single	50	2.2	220-240∆/345-415Y	12.5∆/7.2Y	320	-160	200	69	36
2JB790-H26	single	60	2.55	220-275∆/380-480Y	12.6∆/7.3Y	370	-240	250	72	36

Performance Curve

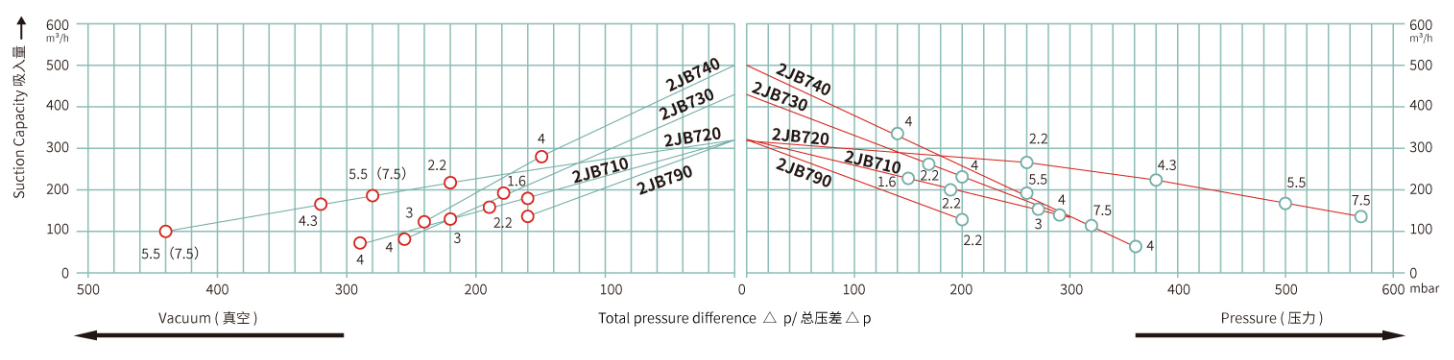

Vaccum Perfcmance Curve 50HZ/Compressor Perlomance Curve 50HZ

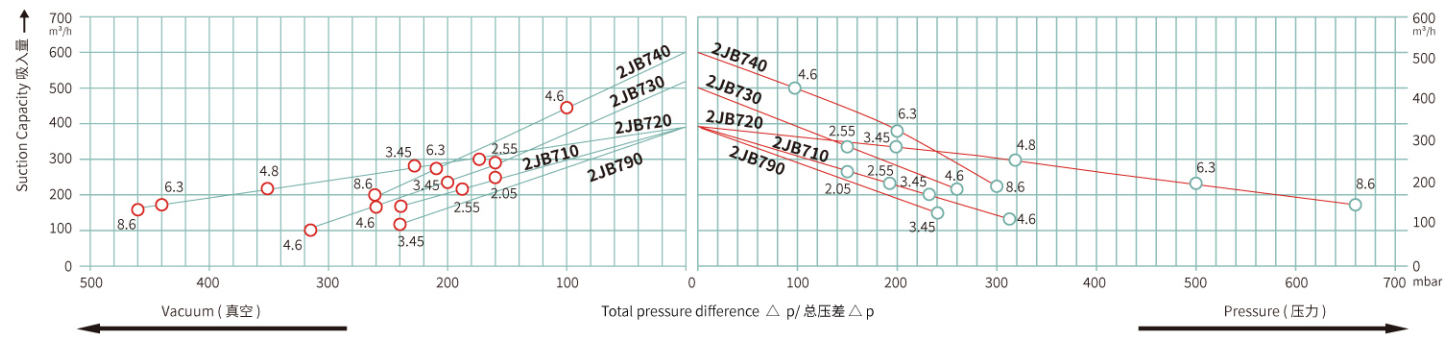

Vaccum Perfornance Curve 60HZ /Compressor Perotmance Curve 60HZ

Keyword:

2JB7|3AC High Pressure Electric Air Side Channel Blower

Categories:

2JB Side Channel Blower Single Stage
