Two-impeller paddle wheel aerator

E-mail: sales@jinhulong.com

Phone: +86 15757686666

Get A Quote

Also Like

Product Description

Detail display

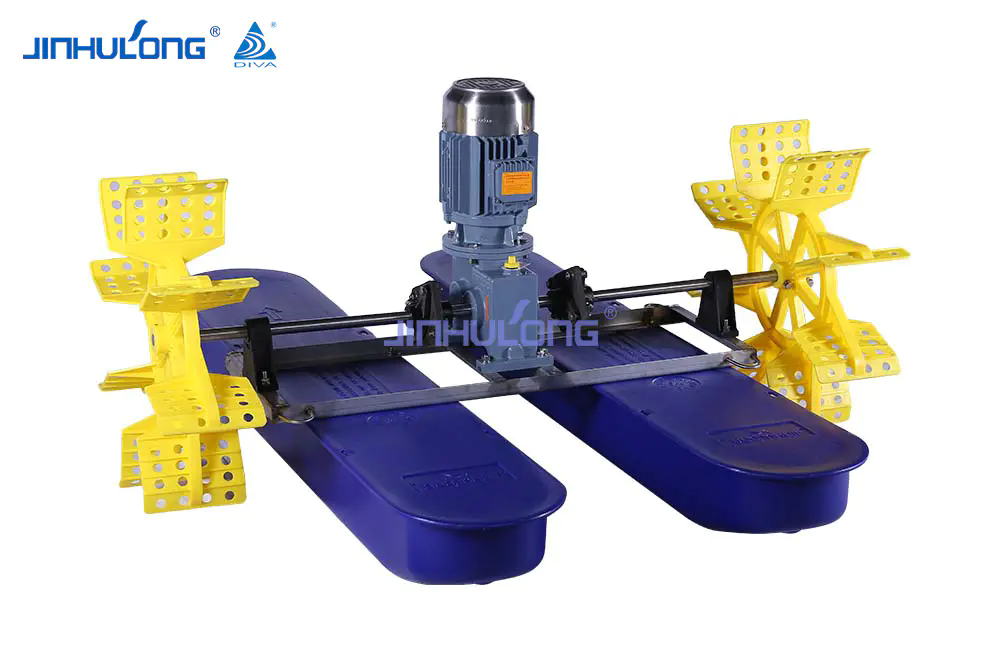

The Two-Impeller Paddle Wheel Aerator uses two sets of impeller to rotate. The gear box design is divided into four spine and nine spine, using a copper core motor to make the aerator operate efficiently for a long time while reducing noise. Different from traditional motors, Jinhulong adopts high-quality pure-copper wire motors, which are resistant to high temperature and stable in performance. Strong motor power can make the machine work continuously and efficiently to increase oxygen. The impeller is enlarged and thickened, which makes the spray larger and reduces the corrosion of sea water and the sun. The design of the waterproof cover is anti-freeze, anti-drop, anti-corrosion, novel and sturdy in appearance, light in size, and easy to install.

Model	Power		Voltage V/50Hz	Power efficiency (kg/kW.h)	DO (kg/hr)	AMP (A)	Weight (kg）	40 Container set
Model	kW	Hp	Voltage V/50Hz	Power efficiency (kg/kW.h)	DO (kg/hr)	AMP (A)	Weight (kg）	40 Container set
YC-0.30（Small 2-leaf） Effectve water flow:30m	0.3	0.5	220-380	≥1.0	≥1.0	0.60	37	≈300
YC-0.75 （2-leaf） Effectve waterfiow:50m	0.75	1	220	≥1.25	≥1.6	1.25	80	185
YC-0.75（2-leaf） Effective waterfiow:50m	0.75	1	380	≥1.25	≥1.9	1.25	80	185
YC-0.75（4-leaf） Efective water fiow:50m	0.75	1	380	≥1.25	2.3-2.6	1.60	80	185
YC-1.5 （4-leaf） Effective water fiow:55m	1.5	2	220	≥1.25	2.6-2.9	2.45	100	133
YC-1.5 （4-leaf） Effective water fiow:55m	1.5	2	380	≥1.25	2.8-3.1	2.45	100	133
YC-1.5 （6-leaf） Effective water fiow:60m	1.5	3	380	≥1.5	3.6-3.8	2.60	120	66
YC-2.2（8~10-leaf） Effective waterflow:65m	2.2	3	380	≥1.5	4.0-4.3	2.80	125	63
YC-2.2（12-leaf） Effective water flow:70r	3	3.5	380	≥1.5	4.3-4.6	3.0	135	60
YC-3.0（14-leaf） Effective water flow:75m	3	4	380	≥1.65	4.7-5.1	5.3	187	57
YC-3.0（16-leaf） Effective water flow:80m	3	4	380	≥1.65	5.3-5.6	5.3	192	54
