Product Description
Detail display

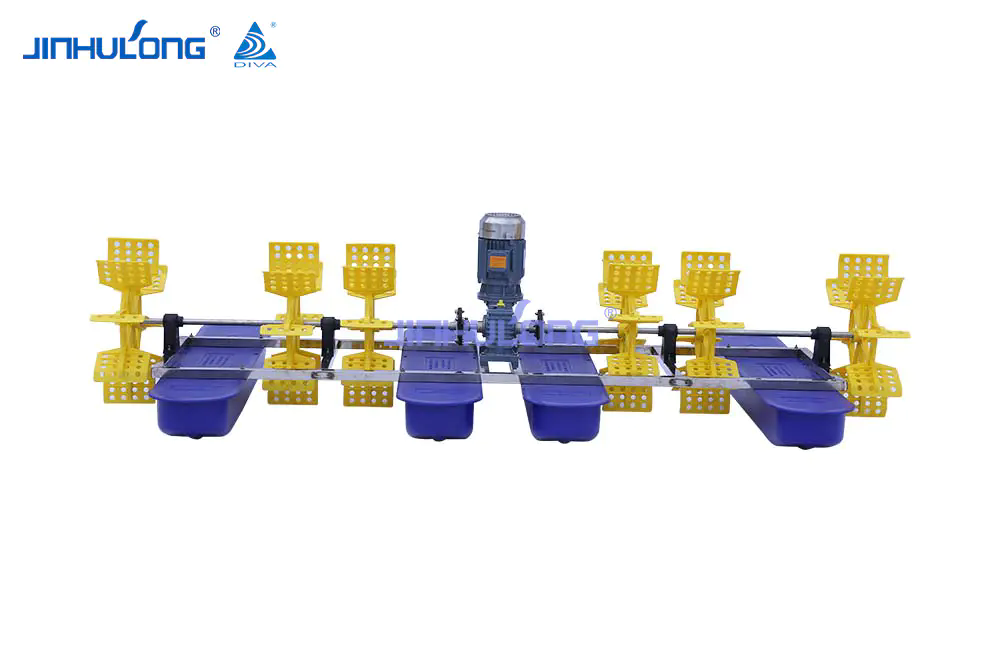

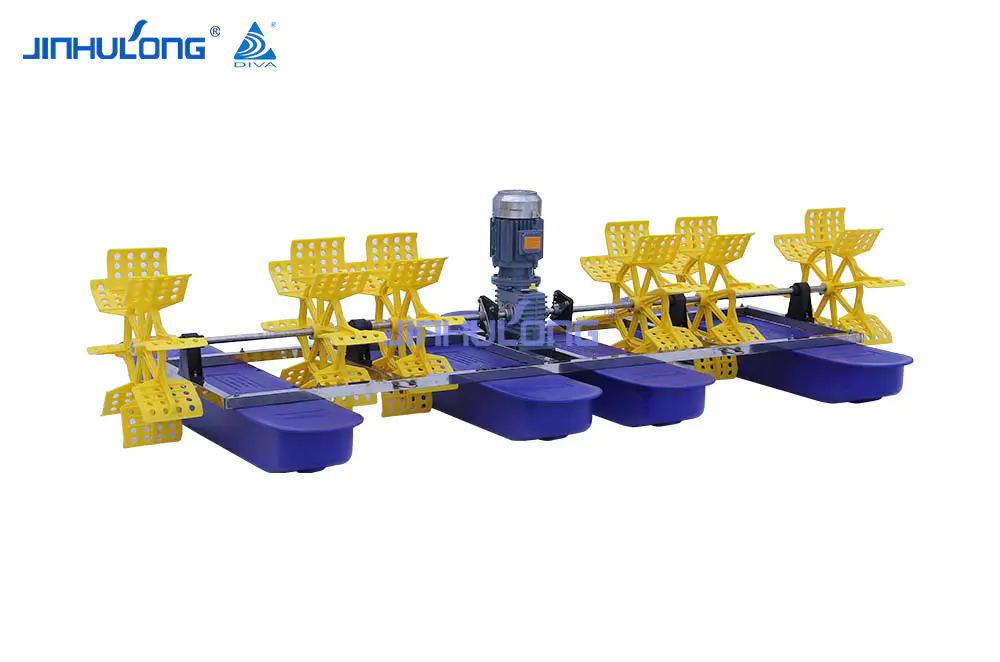

This Six-Impeller Paddle Wheel Aerator uses four sets of impellers to rotate. The copper core motor and all-copper wire motor can make the performance of the aerator stable and enhance the working time efficiently. The high-precision rotor can greatly prolong the service life of the machine. It is durable and wear-resistant. High precision double bearing can opreate with low noise. It is anti-aging, high performance, and durable.
|
Model |
Power | Voltage V/50Hz |
Power efficiency (kg/kW.h) |
DO (kg/hr) |
AMP (A) |
Weight (kg） |
40 Container set |
|
| kW | Hp | |||||||
| YC-0.30（Small 2-leaf） Effectve water flow:30m |
0.3 | 0.5 | 220-380 | ≥1.0 | ≥1.0 | 0.60 | 37 | ≈300 |
| YC-0.75 （2-leaf） Effectve waterfiow:50m |
0.75 | 1 | 220 | ≥1.25 | ≥1.6 | 1.25 | 80 | 185 |
| YC-0.75（2-leaf） Effective waterfiow:50m |
0.75 | 1 | 380 | ≥1.25 | ≥1.9 | 1.25 | 80 | 185 |
| YC-0.75（4-leaf） Efective water fiow:50m |
0.75 | 1 | 380 | ≥1.25 | 2.3-2.6 | 1.60 | 80 | 185 |
| YC-1.5 （4-leaf） Effective water fiow:55m |
1.5 | 2 | 220 | ≥1.25 | 2.6-2.9 | 2.45 | 100 | 133 |
| YC-1.5 （4-leaf） Effective water fiow:55m |
1.5 | 2 | 380 | ≥1.25 | 2.8-3.1 | 2.45 | 100 | 133 |
| YC-1.5 （6-leaf） Effective water fiow:60m |
1.5 | 3 | 380 | ≥1.5 | 3.6-3.8 | 2.60 | 120 | 66 |
| YC-2.2（8~10-leaf） Effective waterflow:65m |
2.2 | 3 | 380 | ≥1.5 | 4.0-4.3 | 2.80 | 125 | 63 |
| YC-2.2（12-leaf） Effective water flow:70r |
3 | 3.5 | 380 | ≥1.5 | 4.3-4.6 | 3.0 | 135 | 60 |
| YC-3.0（14-leaf） Effective water flow:75m |
3 | 4 | 380 | ≥1.65 | 4.7-5.1 | 5.3 | 187 | 57 |
| YC-3.0（16-leaf） Effective water flow:80m |
3 | 4 | 380 | ≥1.65 | 5.3-5.6 | 5.3 | 192 | 54 |
