Product Description
Detail display

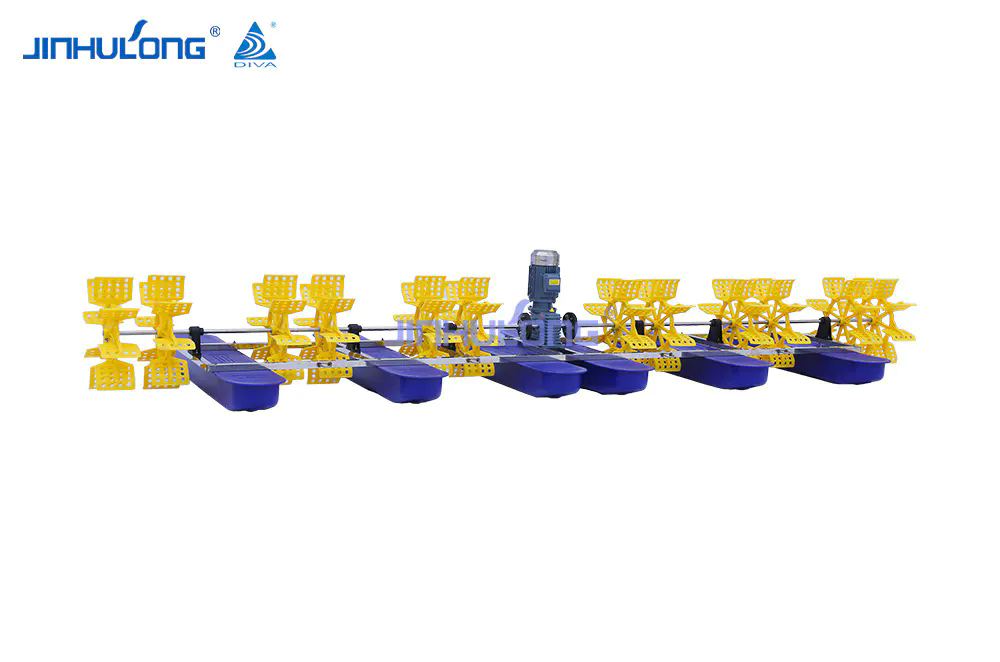

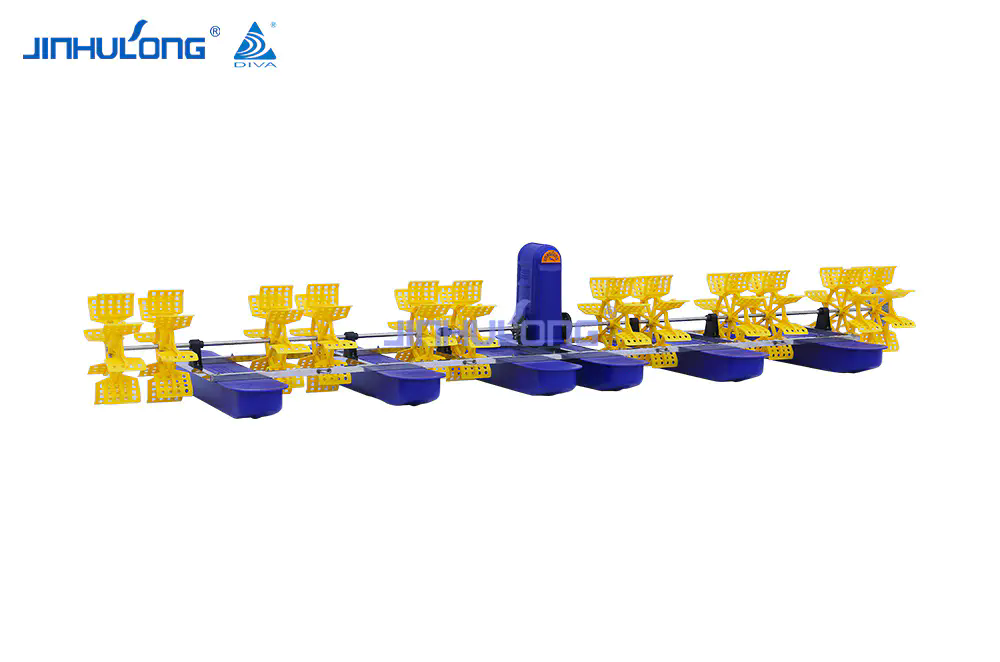

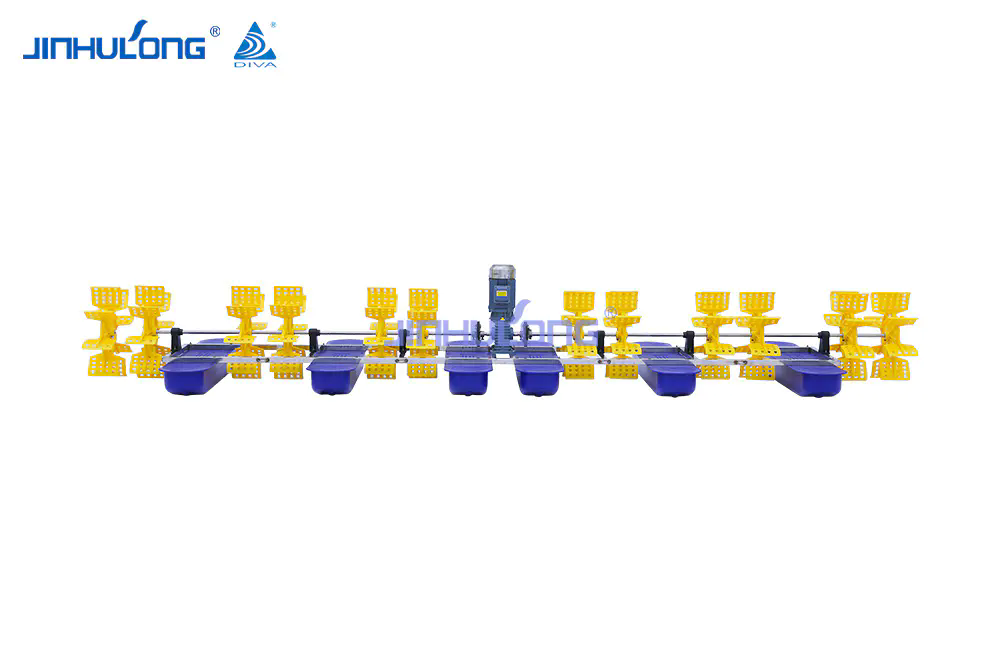

This Twelve-Impeller Paddle Wheel Aerator uses four sets of impellers to rotate. Jinhulong's customized motor design enables the aerator to work all day long, durable and reliable. Strong motor power and high-speed rotation make the machine work efficiently and consistenly. At the same time, the copper core engine is resistant to high temperature, which makes the performance more stable.
|
Model |
Power | Voltage V/50Hz |
Power efficiency (kg/kW.h) |
DO (kg/hr) |
AMP (A) |
Weight (kg） |
40 Container set |
|
| kW | Hp | |||||||
| YC-0.30（Small 2-leaf） Effectve water flow:30m |
0.3 | 0.5 | 220-380 | ≥1.0 | ≥1.0 | 0.60 | 37 | ≈300 |
| YC-0.75 （2-leaf） Effectve waterfiow:50m |
0.75 | 1 | 220 | ≥1.25 | ≥1.6 | 1.25 | 80 | 185 |
| YC-0.75（2-leaf） Effective waterfiow:50m |
0.75 | 1 | 380 | ≥1.25 | ≥1.9 | 1.25 | 80 | 185 |
| YC-0.75（4-leaf） Efective water fiow:50m |
0.75 | 1 | 380 | ≥1.25 | 2.3-2.6 | 1.60 | 80 | 185 |
| YC-1.5 （4-leaf） Effective water fiow:55m |
1.5 | 2 | 220 | ≥1.25 | 2.6-2.9 | 2.45 | 100 | 133 |
| YC-1.5 （4-leaf） Effective water fiow:55m |
1.5 | 2 | 380 | ≥1.25 | 2.8-3.1 | 2.45 | 100 | 133 |
| YC-1.5 （6-leaf） Effective water fiow:60m |
1.5 | 3 | 380 | ≥1.5 | 3.6-3.8 | 2.60 | 120 | 66 |
| YC-2.2（8~10-leaf） Effective waterflow:65m |
2.2 | 3 | 380 | ≥1.5 | 4.0-4.3 | 2.80 | 125 | 63 |
| YC-2.2（12-leaf） Effective water flow:70r |
3 | 3.5 | 380 | ≥1.5 | 4.3-4.6 | 3.0 | 135 | 60 |
| YC-3.0（14-leaf） Effective water flow:75m |
3 | 4 | 380 | ≥1.65 | 4.7-5.1 | 5.3 | 187 | 57 |
| YC-3.0（16-leaf） Effective water flow:80m |
3 | 4 | 380 | ≥1.65 | 5.3-5.6 | 5.3 | 192 | 54 |
Keyword:
Twelve-Impeller Paddle Wheel Aerator
