2JB2|3AC 50/60Hz High Pressure Vortex Side Channel Blower
E-mail: sales@jinhulong.com
Phone: +86 15757686666
Product Description
Detail display
1.The motor ofthe high-pressure blower is rated ip55 for protection and class Finsulation level heat resistant up to 155"c, which extends its service life.
2.100% oil-free and water-free compression, air clean and sanitary.
3. All products adopt dual-frequency 50Hz/60Hz, wide votage desien,covering and meeting the voltage levels worldwide, enhancing stability.
4.The mpeler and pump body are both castby high qualtyaluminumaloy molds,which improves the durabity,stabily,and ruggednes ofthe product.This ensures a highmprecision manufac turing process and an attractive appearance.
5.Germany and Japan import high-precision CNc machine tools for procesing,and strict performance testing and experiments areconducted to ensure excelentproduc performance.
6. Good sealing performance, low noise, maintenance-free use, low mechanical wear, and long service life.
The 2JB2|3AC Three Phase High-Pressure Side Channel Blower is a industrial solution designed to meet the demands of diverse applications requiring efficient and reliable air handling. Engineered with precision and built for performance, this blower combines advanced technology with robust construction to deliver results in various industrial settings.
Key Features:
High Pressure Performance:
At the heart of the 2JB2|3AC blower is its exceptional high-pressure performance, making it a choice for applications demanding a robust air supply. Whether it's pneumatic conveying, wastewater treatment, or other high-pressure air applications, this blower excels in delivering consistent and powerful airflow.
Three Phase Efficiency:
Equipped with a three-phase motor, this blower ensures efficient and reliable operation. The three-phase power system enhances motor performance, providing a more stable and consistent power supply. This results in improved reliability, reduced energy consumption, and increased overall operational efficiency.
Versatility in Frequency:
The blower supports both 50Hz and 60Hz frequencies, offering versatility in deployment across global industrial setups. This adaptability makes it suitable for integration into systems operating in regions with different power frequency standards.
IP55 Protection:
With an IP55 rating, the blower is designed to withstand harsh environmental conditions. The ingress protection ensures resistance to dust and water, making it suitable for installation in challenging industrial environments where exposure to the elements is a concern.
Robust Construction:
Built with durability in mind, the 2JB2|3AC blower features a rugged construction that can withstand the rigors of industrial applications. High-quality materials and precision engineering contribute to the blower's longevity, reducing maintenance needs and downtime.
Low Noise Operation:
Despite its powerful performance, the blower is designed to operate with minimal noise. This feature is particularly crucial in applications where noise reduction is a priority, creating a more conducive working environment.
Efficient Cooling:
The blower incorporates an efficient cooling system to prevent overheating during extended operation. This feature ensures the longevity of the motor and other critical components, promoting a reliable and sustainable performance over time.
Applications:
The versatility of the 2JB2|3AC blower makes it suitable for a wide range of industrial applications, including:
Pneumatic Conveying: The blower's high-pressure capabilities make it ideal for conveying bulk materials in pneumatic systems.
Wastewater Treatment: In wastewater treatment plants, the blower plays a crucial role in providing aeration for biological processes.
Industrial Vacuum Systems: Its robust construction and reliable performance make it well-suited for industrial vacuum systems, aiding in material handling and cleaning processes.
Gas Compression: The blower's high-pressure output is beneficial in various gas compression applications across industries.
Drying Processes: In manufacturing processes that involve drying, the blower ensures efficient air circulation for quick and effective drying.
Environmental Control Systems: For applications requiring precise air control, such as air curtains and environmental control systems, the blower offers a dependable solution.
The 3AC High-Pressure Side Channel Blower stands out for its performance, reliable operation, and diverse application areas. Whether on industrial production lines or in special environmental conditions, this blower can deliver efficient and stable ventilation solutions. Its advanced design and reliability make it a choice in industrial and commercial sectors, offering customers outstanding ventilation performance and long-term reliability.
| Model | Single | Frequency | Output | Voltage | Current | Max Airflow | Rated Vacuum | Rated Compress | Noises | Weight |
| Double | HZ | KW | V | A | m3/h | mbar | mbar | dB（A） | kg | |
| 2JB010-H06 | single | 50 | 0.12 | 220-240∆/345-415Y | 1.2∆/0.9Y | 80 | -120 | 130 | 53 | 5 |
| 60 | 0.14 | 220-275∆/380-480Y | 1.2∆/0.9Y | 80 | -120 | 130 | 53 | |||
| 2JB110-H06 | single | 50 | 0.2 | 220-240∆/345-415Y | 1.75∆/1.0Y | 85 | -210 | 240 | 55 | 7 |
| 60 | 0.23 | 220-275∆/380-480Y | 1.75∆/1.0Y | 102 | -250 | 250 | 61 | |||
| 2JB210-H06 | single | 50 | 0.25 | 220-240∆/345-415Y | 2.6∆/1.5Y | 105 | -120 | 130 | 54 | 9 |
| 60 | 0.29 | 220-275∆/380-480Y | 2.6∆/1.5Y | 120 | -150 | 160 | 57 | |||
| 2JB210-H16 | single | 50 | 0.4 | 220-240∆/345-415Y | 2.6∆/1.5Y | 80 | -120 | 130 | 53 | 10 |
| 60 | 0.5 | 220-275∆/380-480Y | 2.6∆/1.5Y | 80 | -120 | 130 | 53 | |||
| 2JB230-H16 | single | 50 | 0.4 | 220-240∆/345-415Y | 2.6∆/1.5Y | 105 | -120 | 130 | 54 | 11 |
| 60 | 0.5 | 220-275∆/380-480Y | 2.6∆/1.5Y | 120 | -150 | 160 | 57 | |||
| 2JB230-H26 | single | 50 | 0.7 | 220-240∆/345-415Y | 3.8∆/2.2Y | 105 | -120 | 140 | 54 | 12 |
| 60 | 0.83 | 220-275∆/380-480Y | 3.8∆/2.2Y | 120 | -160 | 180 | 57 | |||
| 2JB220-H26 | pair | 50 | 0.7 | 220-240∆/345-415Y | 3.8∆/2.2Y | 85 | -210 | 240 | 55 | 16 |
| 60 | 0.83 | 220-275∆/380-480Y | 3.75∆/2.15Y | 102 | -250 | 250 | 61 |

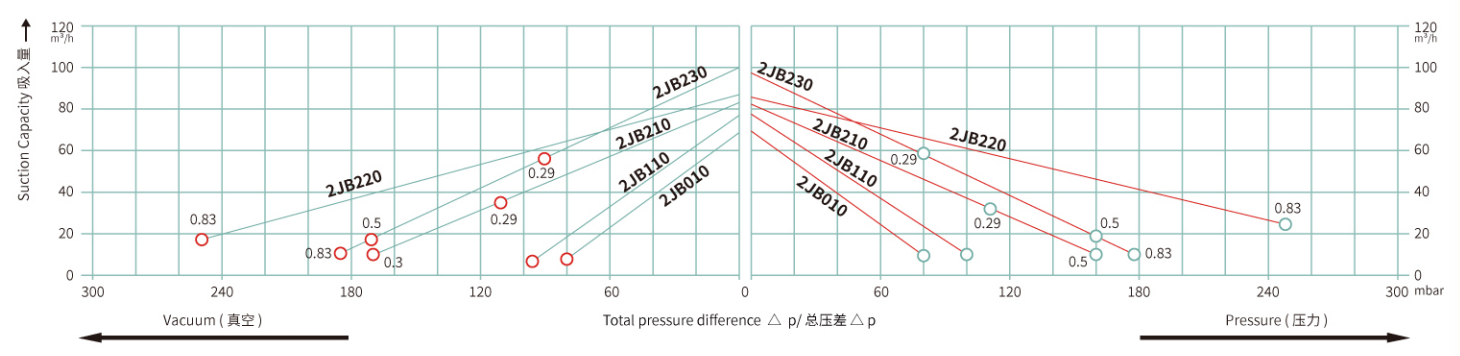

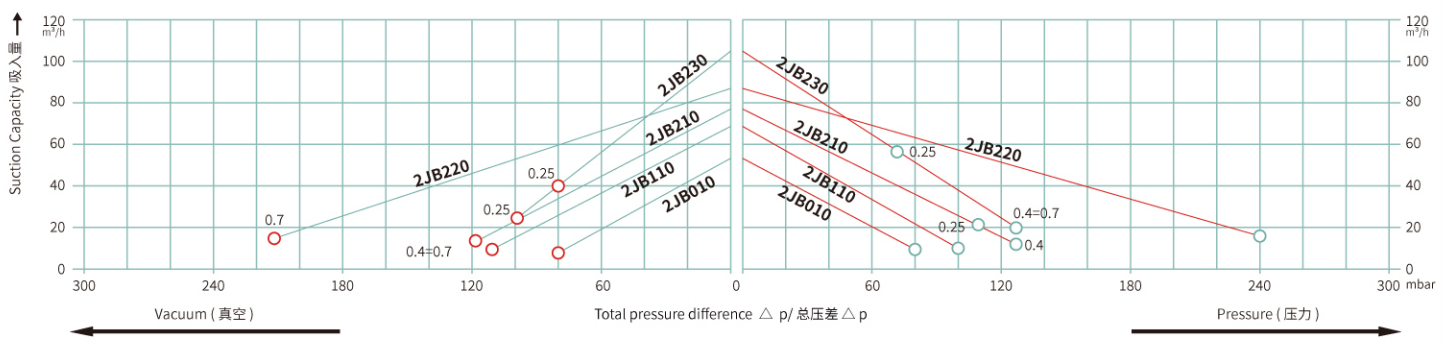

Vaccum Perfcmance Curve 50HZ/Compressor Perlomance Curve 50HZ
Vaccum Perfornance Curve 60HZ /Compressor Perotmance Curve 60HZ
