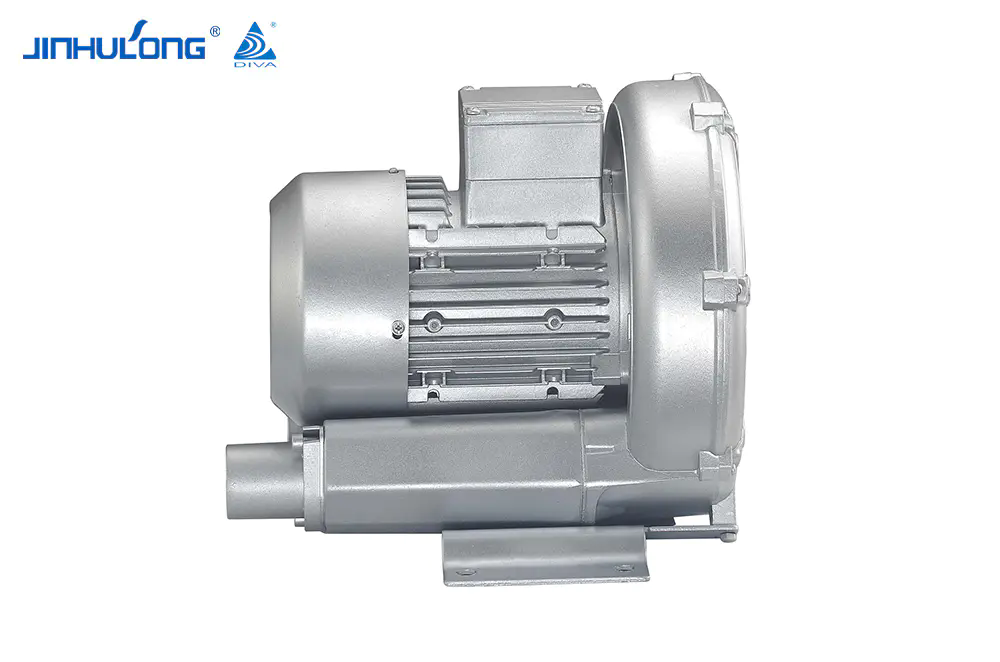

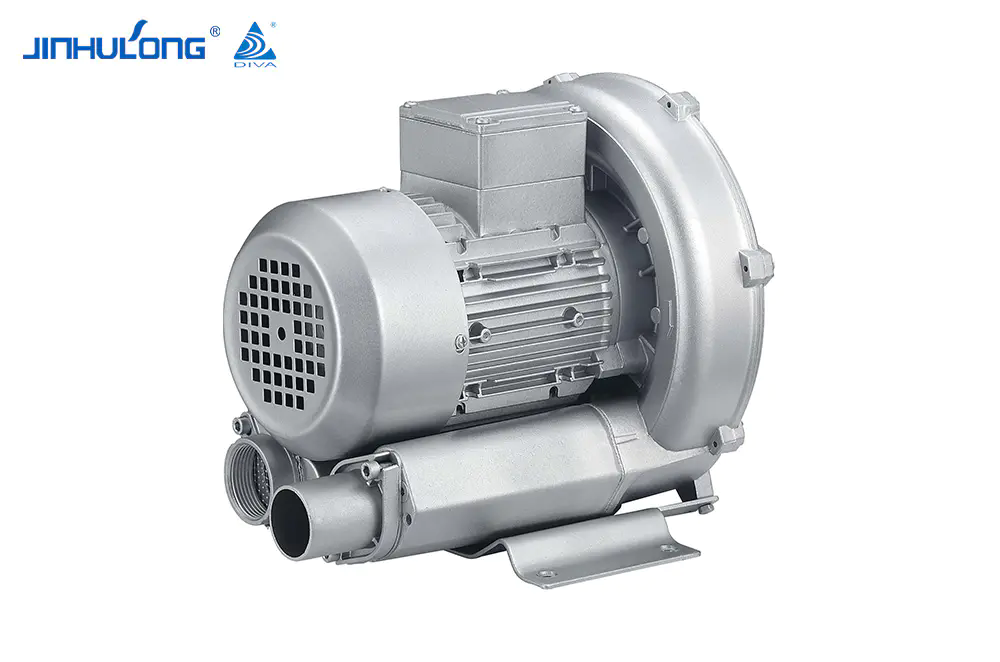

2JB4|3AC Large Air Flow Industrial Usage Side Channel Blower
E-mail: sales@jinhulong.com
Phone: +86 15757686666
Product Description
Detail display
1.The motor ofthe high-pressure blower is rated ip55 for protection and class Finsulation level heat resistant up to 155"c, which extends its service life.
2.100% oil-free and water-free compression, air clean and sanitary.
3. All products adopt dual-frequency 50Hz/60Hz, wide votage desien,covering and meeting the voltage levels worldwide, enhancing stability.
4.The mpeler and pump body are both castby high qualtyaluminumaloy molds,which improves the durabity,stabily,and ruggednes ofthe product.This ensures a highmprecision manufac turing process and an attractive appearance.
5.Germany and Japan import high-precision CNc machine tools for procesing,and strict performance testing and experiments areconducted to ensure excelentproduc performance.
6. Good sealing performance, low noise, maintenance-free use, low mechanical wear, and long service life.
The 2JB4|3AC Large Air Flow Industrial Usage Side Channel Blowers are powerful and versatile devices designed for a wide range of industrial applications. These blowers, also known as regenerative or ring blowers, utilize a side channel to generate a high-speed air flow, making them ideal for applications that require efficient and reliable air movement.
Key Features:
Output Range: The 2JB4|3AC series offers a versatile output range, with models ranging from 0.7 kW to 2.55 kW. This allows users to select the appropriate blower based on the specific demands of their applications.
Frequency Options: The blowers are available in both 50 Hz and 60 Hz configurations, catering to global industrial standards. This flexibility ensures compatibility with diverse power systems worldwide.
High Air Flow Capacity: The 2JB4|3AC boasts an impressive air flow capacity, making it a reliable choice for applications demanding substantial volumes of air movement. Whether it's industrial ventilation, pneumatic conveying, or wastewater treatment, this blower delivers exceptional performance.
Robust Construction: Built to withstand the rigors of industrial environments, the blower features a robust construction using high-quality materials. This ensures durability and longevity, even in challenging conditions.
Energy Efficiency: In an era where energy conservation is paramount, the 2JB4|3AC excels with its energy-efficient design. The advanced technology employed in its construction maximizes performance while minimizing energy consumption, resulting in cost savings for the end user.
Variable Speed Control: Tailoring the air flow to specific industrial processes is made easy with the variable speed control feature. This not only enhances flexibility but also contributes to optimized energy usage based on the application requirements.
Low Noise Operation: Despite its powerful performance, the blower operates with low noise levels. This is crucial for industrial settings where noise reduction is a priority, ensuring a conducive working environment.
Easy Installation and Maintenance: Designed with user convenience in mind, the 2JB4|3AC offers easy installation and maintenance. Minimal downtime is crucial in industrial operations, and this blower minimizes disruptions with its user-friendly features.
Applications:
Environmental Protection/Water Treatment:
The 2JB4|3AC Side Channel Blowers play a pivotal role in the environmental protection sector, aiding in air and gas handling processes. In water treatment, these blowers contribute to aeration processes, ensuring oxygen transfer for effective water purification.
Printing Industry:
In the printing industry, these blowers provide pressurized air for various printing processes, ensuring precision and efficiency in print production.
Plastics Industry:
For conveying and processing applications in the plastics industry, these blowers facilitate the movement of bulk materials with precision and reliability.
Food and Beverage Industry:
Compliant with food-grade standards, these blowers are integral to processes in the food and beverage industry, ensuring standards of hygiene and performance.
Pneumatic Conveying:
In pneumatic conveying applications, the 2JB4|3AC blowers contribute to the efficient and reliable transport of bulk materials in industrial settings.
The 2JB4|3AC Large Air Flow Industrial Usage Side Channel Blowers represent a solution for a myriad of industrial applications. Their robust design, adaptability, and variable output options make them a choice across industries, contributing to increased efficiency, reliability, and overall excellence.
| Model | Single | Frequency | Output | Voltage | Current | Max Airflow | Rated Vacuum | Rated Compress | Noises | Weight |
| Double | HZ | KW | V | A | m3/h | mbar | mbar | dB(A) | kg | |
| 2JB410-H06 | single | 50 | 0.7 | 220-240∆/345-415Y | 3.8∆/2.2Y | 145 | -120 | 120 | 63 | 13 |
| 60 | 0.83 | 220-275∆/380-480Y | 3.75∆/2.15Y | 175 | -140 | 140 | 64 | |||
| 2JB410-H16 | single | 50 | 0.85 | 220-240∆/345-415Y | 4.0∆/2.3Y | 145 | -160 | 160 | 63 | 16 |
| 60 | 0.95 | 220-275∆/380-480Y | 3.85∆/2.25Y | 175 | -160 | 160 | 64 | |||
| 2JB410-H26 | single | 50 | 1.3 | 220-240∆/345-415Y | 5.7∆/3.3Y | 145 | -170 | 200 | 63 | 17 |
| 60 | 1.5 | 220-275∆/380-480Y | 6.0∆/3.5Y | 175 | -210 | 220 | 64 | |||
| 2JB430-H06 | single | 50 | 0.7 | 220-240∆/345-415Y | 3.8∆/2.2Y | 180 | -90 | 90 | 64 | 14 |
| 60 | 0.83 | 220-275∆/380-480Y | 3.8∆/2.2Y | 210 | -100 | 110 | 65 | |||
| 2JB430-H16 | single | 50 | 0.85 | 220-240∆/345-415Y | 4.2∆/2.4Y | 180 | -110 | 100 | 64 | 17 |
| 60 | 0.95 | 220-275∆/380-480Y | 4.0∆/2.3Y | 210 | -120 | 120 | 65 | |||
| 2JB430-H26 | single | 50 | 1.3 | 220-240∆/345-415Y | 6.6∆/3.8Y | 180 | -180 | 180 | 64 | 18 |
| 60 | 1.5 | 220-275∆/380-480Y | 6.9∆/4.0Y | 210 | -180 | 170 | 65 | |||
| 2JB490-H16 | single | 50 | 0.7 | 220-240∆/345-415Y | 2.8∆/1.6Y | 140 | -120 | 120 | 63 | 14 |
| 60 | 0.85 | 220-275∆/380-480Y | 3.6∆/2.1Y | 175 | -140 | 140 | 64 | |||
| 2JB420-H36 | pair | 50 | 1.6 | 220-240∆/345-415Y | 7.5∆/4.3Y | 150 | -280 | 280 | 66 | 25 |
| 60 | 2.05 | 220-275∆/380-480Y | 7.6∆/4.4Y | 180 | -320 | 310 | 69 | |||
| 2JB420-H46 | pair | 50 | 2.2 | 220-240∆/345-415Y | 9.7∆/5.6Y | 150 | -330 | 420 | 66 | 27 |
| 60 | 2.55 | 220-275∆/380-480Y | 10∆/5.89Y | 180 | -350 | 440 | 69 |

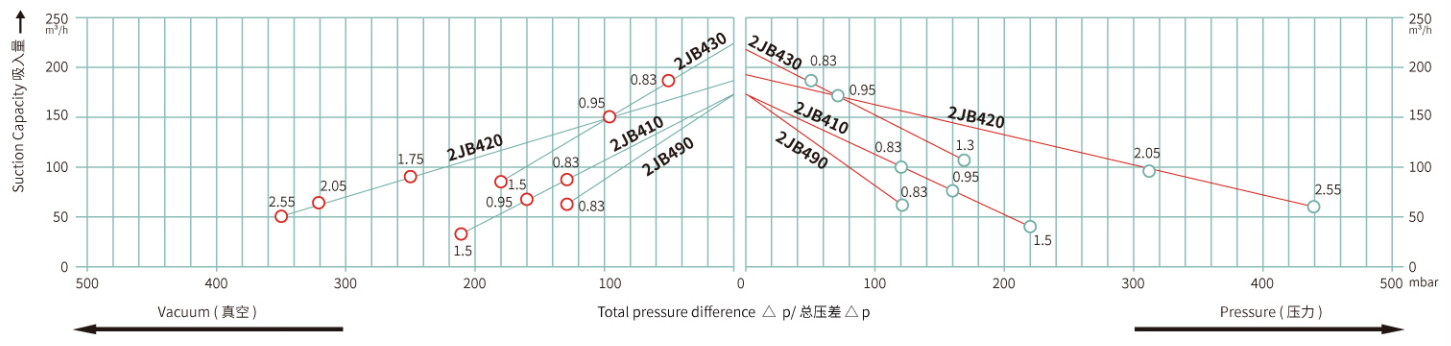

Vaccum Perfcmance Curve 50HZ/Compressor Perlomance Curve 50HZ

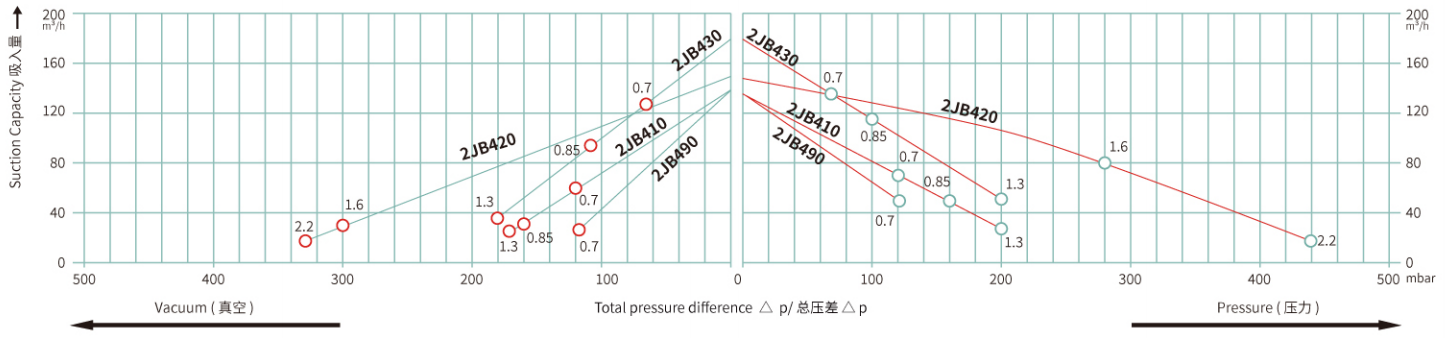

Vaccum Perfornance Curve 60HZ /Compressor Perotmance Curve 60HZ
