2JB9|3AC High Air Flow IP55 Side Channel Ring Blower
E-mail: sales@jinhulong.com
Phone: +86 15757686666
Product Description
Detail display
1.The motor ofthe high-pressure blower is rated ip55 for protection and class Finsulation level heat resistant up to 155"c, which extends its service life.
2.100% oil-free and water-free compression, air clean and sanitary.
3. All products adopt dual-frequency 50Hz/60Hz, wide votage desien,covering and meeting the voltage levels worldwide, enhancing stability.
4.The mpeler and pump body are both castby high qualtyaluminumaloy molds,which improves the durabity,stabily,and ruggednes ofthe product.This ensures a highmprecision manufac turing process and an attractive appearance.
5.Germany and Japan import high-precision CNc machine tools for procesing,and strict performance testing and experiments areconducted to ensure excelentproduc performance.
6. Good sealing performance, low noise, maintenance-free use, low mechanical wear, and long service life.
Introducing the 2JB9|3AC High Air Flow IP55 Side Channel Ring Blowers, a robust and reliable solution engineered to meet the demanding requirements of various industrial applications. These blowers are designed to deliver performance, durability, and efficiency without compromising on quality.
Key Features:
Robust Construction:
The 2JB9|3AC blowers are built with durability in mind. Their robust construction ensures long-lasting performance even in challenging environments. The high-quality materials used in their manufacturing make them resistant to wear and tear, contributing to their extended operational life.
High Air Flow Efficiency:
One of the standout features of these blowers is their exceptional air flow efficiency. They are designed to deliver a consistent and powerful airflow, making them ideal for applications that demand reliable ventilation and air circulation. This high efficiency contributes to energy savings, making them a cost-effective solution for industrial processes.
IP55 Protection:
With an IP55 protection rating, these blowers are well-equipped to withstand dust, moisture, and other environmental factors. This ensures their performance remains stable and reliable even in challenging conditions, making them suitable for a wide range of industrial settings.
Side Channel Design:
The innovative side channel design is a key element that sets these blowers apart. This design enhances their overall efficiency by minimizing energy loss and optimizing airflow. The side channel configuration also contributes to quieter operation, reducing noise levels in the working environment.
Easy Installation and Maintenance:
Designed with user convenience in mind, these blowers feature an easy installation process. Their user-friendly design ensures that operators can integrate them into their systems with minimal effort. Additionally, the maintenance requirements are straightforward, reducing downtime and overall operational costs.
Temperature Tolerance:
The 2JB9|3AC blowers exhibit impressive temperature tolerance, making them suitable for applications that involve exposure to elevated temperatures. This characteristic expands their utility in industries where thermal stability is a critical factor.
Customization Options
Recognizing that different industries have unique requirements, the 2JB9|3AC blowers offer customization options to meet specific needs. From varying motor specifications to tailored airflow rates, these blowers can be configured to match the precise demands of different applications.
Compliance and Safety
Meeting industry standards for safety and compliance is non-negotiable, and the 2JB9|3AC blowers excel in this aspect. With adherence to international safety standards and regulations, these blowers provide users with peace of mind regarding workplace safety and regulatory compliance.
Quiet Operation
Noise pollution is a significant concern in industrial environments. The 2JB9|3AC blowers address this issue with a design that prioritizes quiet operation. The innovative engineering minimizes noise levels without compromising on performance, creating a more conducive working environment for operators.
Applications:
These high-performance blowers find application across various industries, including but not limited to:
Manufacturing: For ventilation and cooling in production facilities.
Material Handling: Ideal for pneumatic conveying systems.
Environmental Control: Effective in wastewater treatment plants.
Packaging: Assisting in the sealing and labeling processes.
Agriculture: Providing ventilation in greenhouses.
Conclusion:
In summary, the 2JB9|3AC High Air Flow IP55 Side Channel Ring Blowers represent a reliable and efficient solution for industrial air movement needs. As industries continue to evolve, these blowers serve as a steadfast and adaptable component, contributing to enhanced productivity and operational efficiency.
| Model | Single | Frequency | Output | Voltage | Current | Max Airflow | Rated Vacuum | Rated Compress | Noises | Weight |
| Double | HZ | KW | V | A | m3/h | mbar | mbar | dB(A) | kg | |
| 2JB910-H07 | single | 50 | 8.5 | 345-415∆/600-720Y | 18.2∆/10.5Y | 1050 | -210 | 210 | 74 | 93 |
| 60 | 9.8 | 380-480∆/660-720Y | 18.2∆/10.5Y | 1250 | -180 | 180 | 79 | |||
| 2JB910-H17 | single | 50 | 12.5 | 345-415∆/600-720Y | 28.0∆/16.2Y | 1050 | -280 | 270 | 74 | 116 |
| 60 | 14.5 | 380-480∆/660-720Y | 29.0∆/16.7Y | 1250 | -270 | 260 | 79 | |||
| 2JB910-H27 | single | 50 | 15 | 345-415∆/600-720Y | 35.0∆/20.0Y | 1050 | -320 | 380 | 74 | 120 |
| 60 | 17.5 | 380-480∆/660-720Y | 36.5∆/21.0Y | 1250 | -340 | 360 | 79 | |||
| 2JB910-H37 | single | 50 | 18.5 | 345-415∆/600-720Y | 37.0∆/21.0Y | 1050 | -360 | 460 | 74 | 126 |
| 60 | 21.3 | 380-480∆/660-720Y | 39.0∆/22.5Y | 1250 | -380 | 420 | 79 | |||
| 2JB920-H17 | pair | 50 | 12.5 | 345-415∆/600-720Y | 28.0∆/16.2Y | 1110 | -300 | 270 | 74 | 187 |
| 60 | 14.5 | 380-480∆/660-720Y | 29.0∆/16.7Y | 1310 | -220 | 200 | 84 | |||
| 2JB920-H27 | pair | 50 | 16.5 | 345-415∆/600-720Y | 35.0∆/20.0Y | 1110 | -420 | 370 | 74 | 197 |
| 60 | 19 | 380-480∆/660-720Y | 36.5∆/21.0Y | 1310 | -340 | 300 | 84 | |||
| 2JB920-H37 | pair | 50 | 20 | 345-415∆/600-720Y | 40.0∆/23.0Y | 1110 | -440 | 500 | 74 | 204 |
| 60 | 23 | 380-480∆/660-720Y | 42.0∆/24.2Y | 1310 | -440 | 430 | 84 | |||
| 2JB920-H47 | pair | 50 | 25 | 345-415∆/600-720Y | 52.0∆/30.0Y | 1110 | -450 | 590 | 74 | 211 |
| 60 | 29 | 380-480∆/660-720Y | 52.0∆/30.0Y | 1310 | -450 | 540 | 84 | |||
| 2JB930-H07 | single | 50 | 8.5 | 345-415∆/600-720Y | 18.2∆/10.5Y | 1370 | -120 | 110 | 75 | 98 |
| 60 | 9.8 | 380-480∆/660-720Y | 18.2∆/10.5Y | 1650 | -140 | 140 | 80 | |||
| 2JB930-H17 | single | 50 | 12.5 | 345-415∆/600-720Y | 28.0∆/16.2Y | 1370 | -190 | 180 | 75 | 121 |
| 60 | 14.5 | 380-480∆/660-720Y | 29.0∆/16.7Y | 1650 | -150 | 150 | 80 | |||
| 2JB930-H37 | single | 50 | 18.5 | 345-415∆/600-720Y | 37.0∆/21.0Y | 1370 | -310 | 320 | 75 | 131 |
| 60 | 21.3 | 380-480∆/660-720Y | 39.0∆/22.5Y | 1650 | -300 | 280 | 80 | |||
| 2JB940-H27 | pair | 50 | 15 | 345-415∆/600-720Y | 35.0∆/20.0Y | 1940 | -130 | 110 | 75 | 187 |
| 60 | 17.5 | 380-480∆/660-720Y | 36.5∆/21.0Y | 2310 | -150 | 150 | 84 | |||
| 2JB940-H37 | pair | 50 | 20 | 345-415∆/600-720Y | 40.0∆/23.0Y | 1940 | -220 | 200 | 75 | 212 |
| 60 | 23 | 380-480∆/660-720Y | 42.0∆/24.2Y | 2310 | -160 | 130 | 84 | |||
| 2JB940-H47 | pair | 50 | 25 | 345-415∆/600-720Y | 52.0∆/30.0Y | 1940 | -310 | 270 | 75 | 219 |
| 60 | 29 | 380-480∆/660-720Y | 52.0∆/30.0Y | 2310 | -270 | 220 | 84 | |||
| 2JB943-H27 | pair | 50 | 15 | 345-415∆/600-720Y | 35.0∆/20.0Y | 2050 | -160 | 170 | 75 | 220 |
| 60 | 17.5 | 380-480∆/660-720Y | 36.5∆/21.0Y | 2480 | -110 | 120 | 84 | |||
| 2JB943-H37 | pair | 50 | 20 | 345-415∆/600-720Y | 40.0∆/23.0Y | 2050 | -250 | 230 | 75 | 230 |
| 60 | 23 | 380-480∆/660-720Y | 42.0∆/24.2Y | 2480 | -190 | 180 | 84 | |||
| 2JB943-H47 | pair | 50 | 25 | 345-415∆/600-720Y | 52.0∆/30.0Y | 2050 | -310 | 270 | 75 | 235 |
| 60 | 29 | 380-480∆/660-720Y | 52.0∆/30.0Y | 2480 | -270 | 230 | 84 |

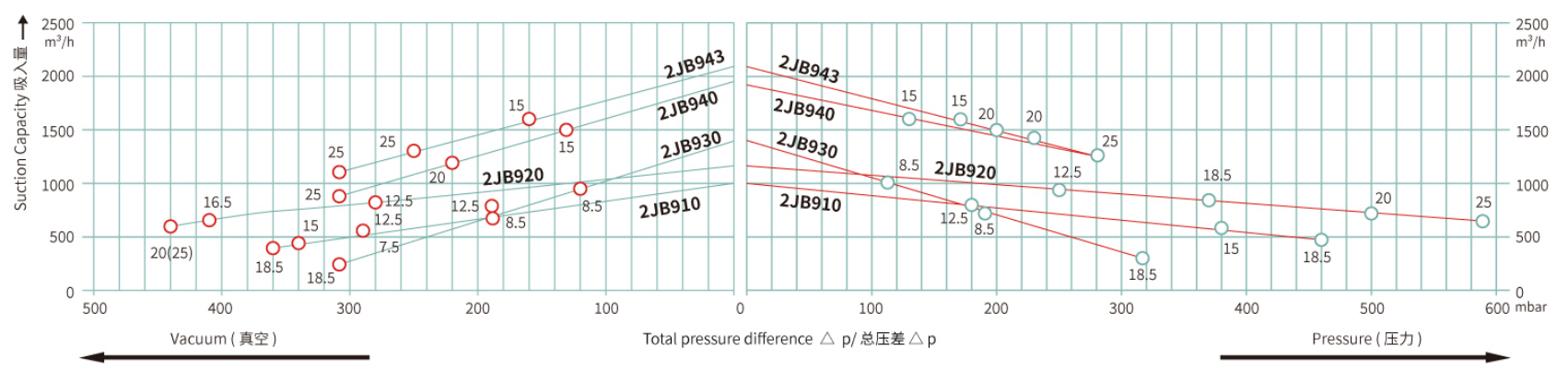

Vaccum Perfcmance Curve 50HZ/Compressor Perlomance Curve 50HZ

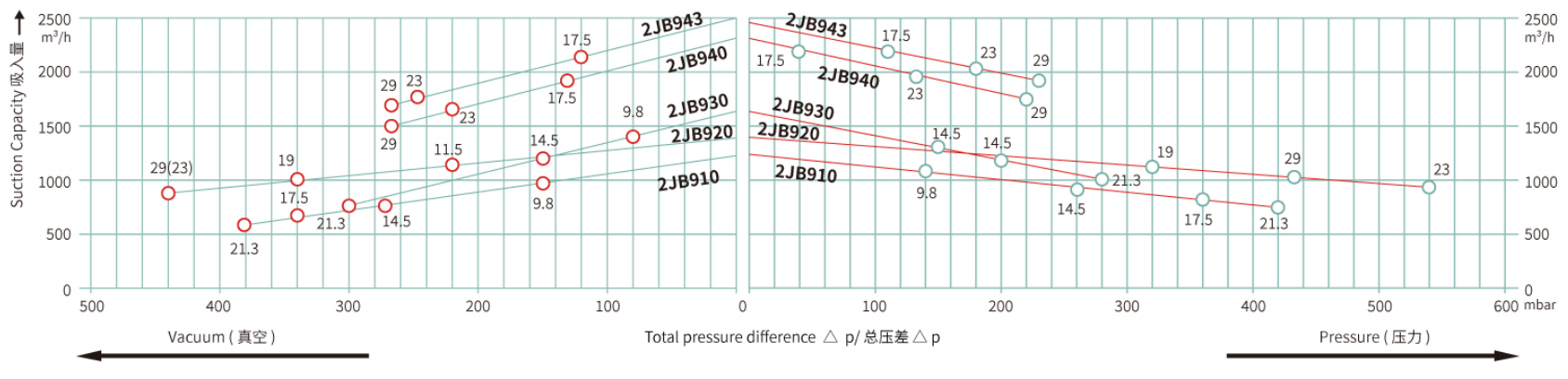

Vaccum Perfornance Curve 60HZ /Compressor Perotmance Curve 60HZ
