Product Description

Detail display

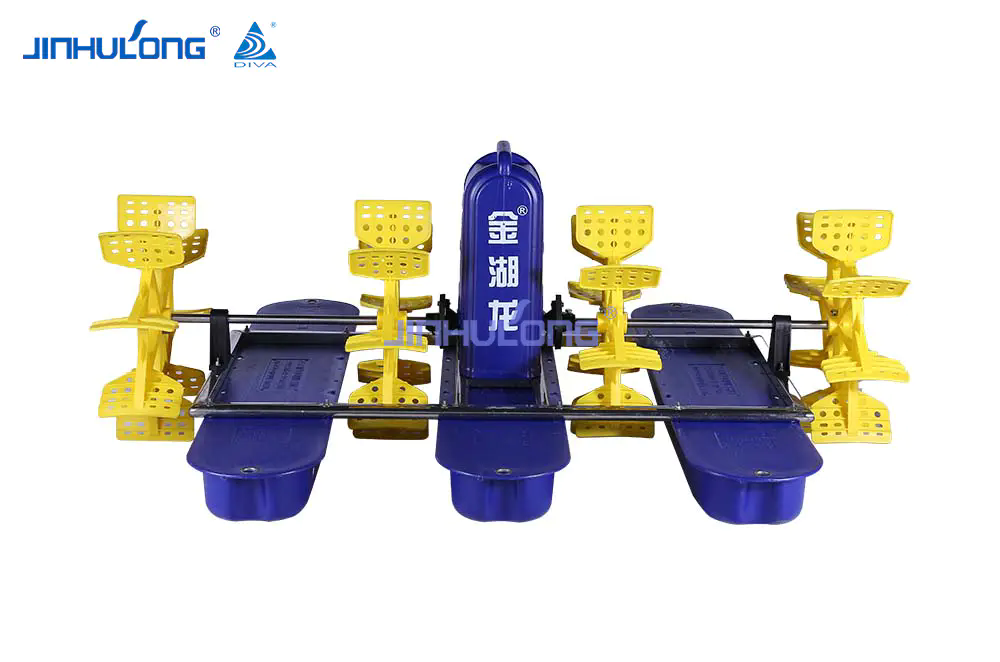

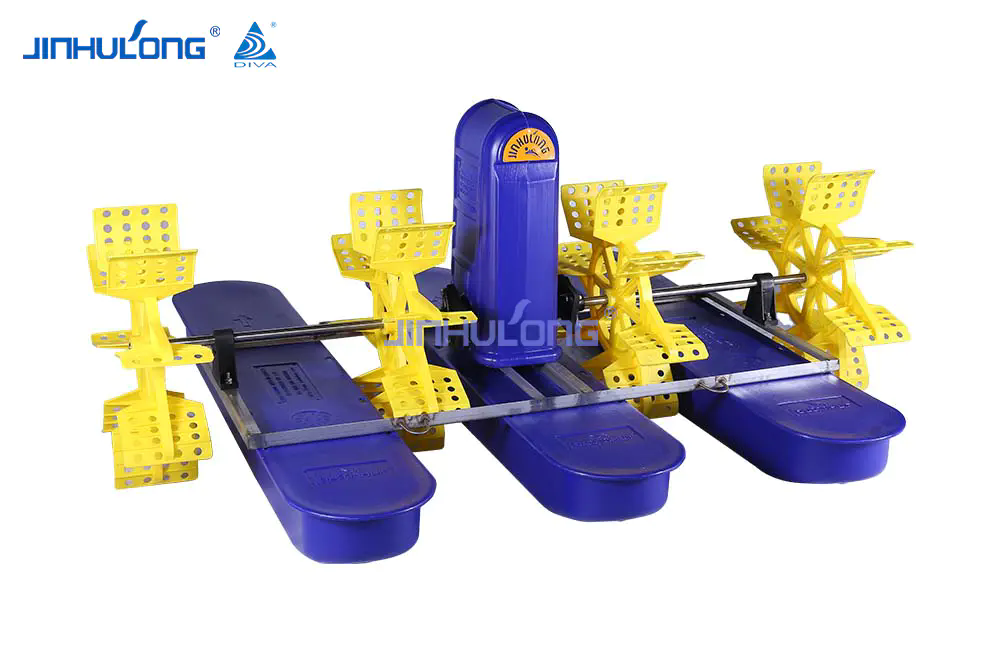

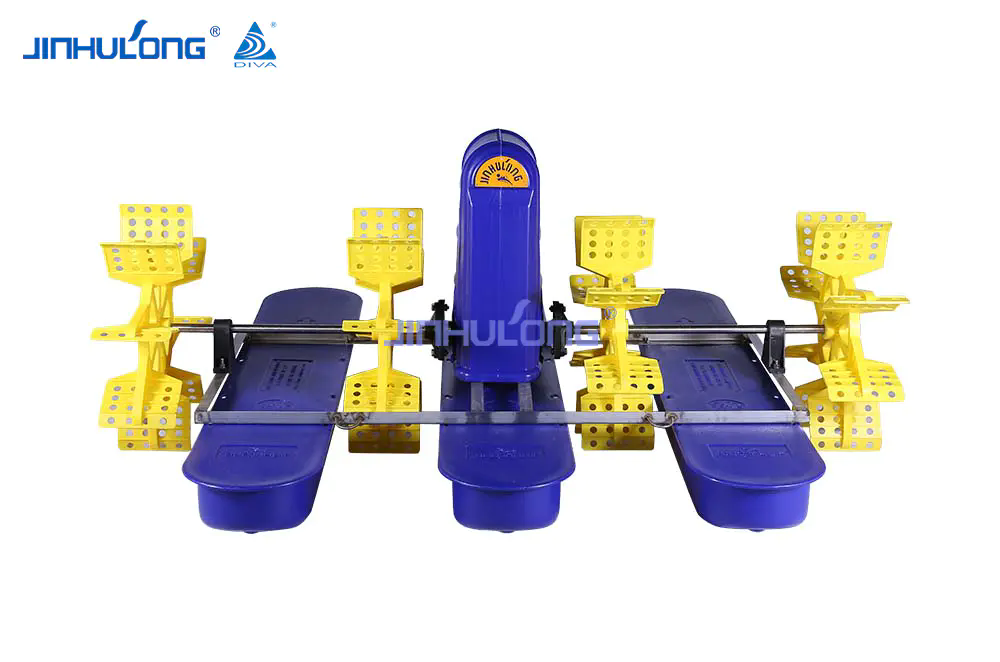

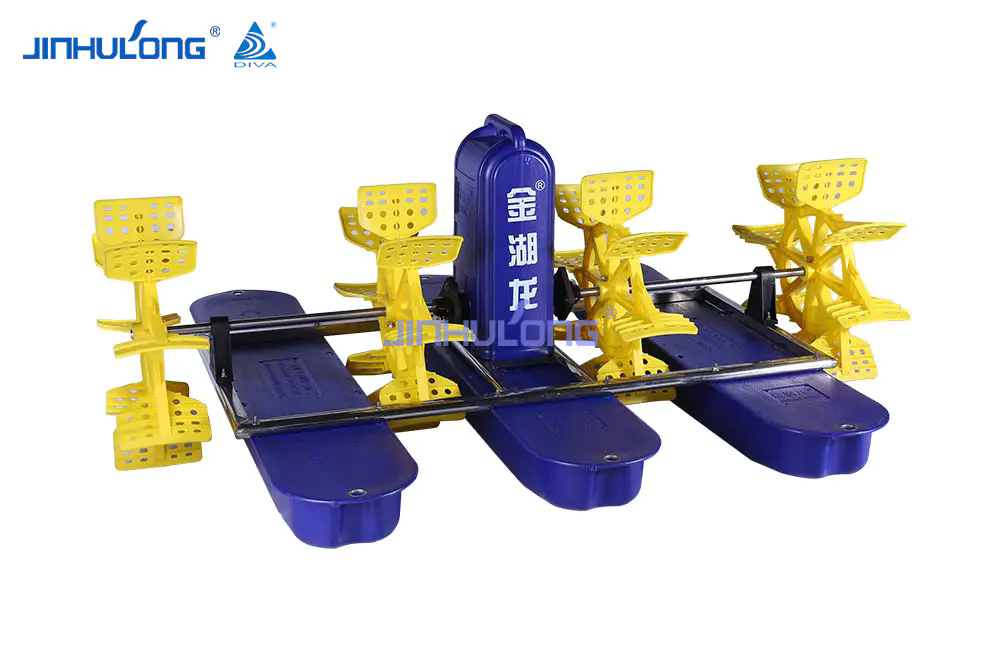

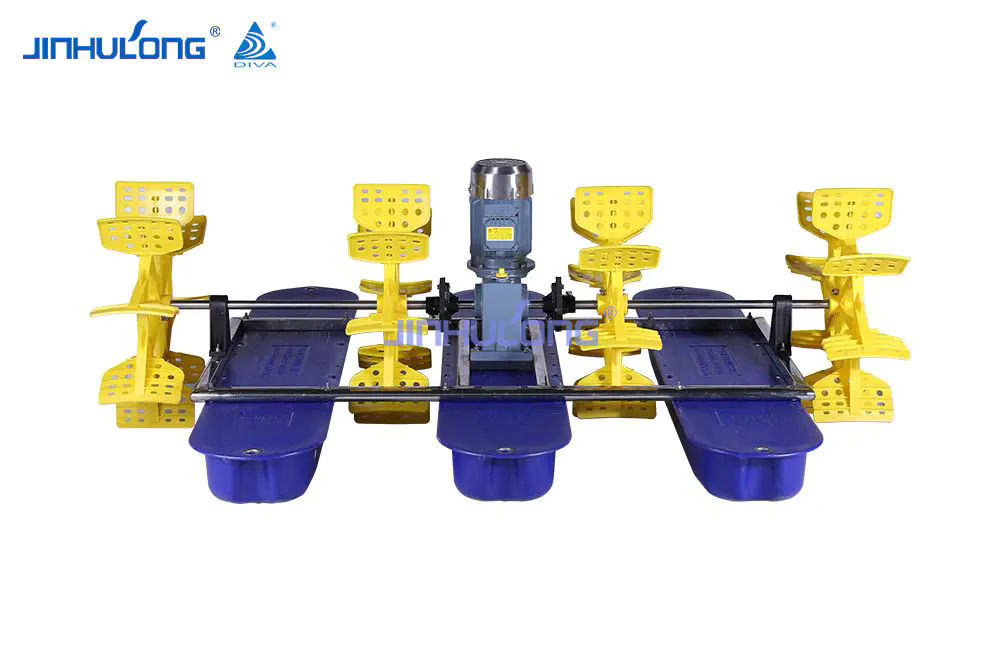

This Four-Impeller Paddle Wheel Aerator uses four sets of impellers to rotate. The gear box design is divided into four spine and nine spine. The design of copper core motor enhances the power while reduces the noise of the aerator. The design of the all-copper wire motor can withstand high temperature and has stable performance, making the machine longer life, durable and reliable. Customized motors can increase the working time of the machine, which can help the fish pond to oxygenate efficiently.

Model	Power		Voltage V/50Hz	Power efficiency (kg/kW.h)	DO (kg/hr)	AMP (A)	Weight (kg）	40 Container set
Model	kW	Hp	Voltage V/50Hz	Power efficiency (kg/kW.h)	DO (kg/hr)	AMP (A)	Weight (kg）	40 Container set
YC-0.30（Small 2-leaf） Effectve water flow:30m	0.3	0.5	220-380	≥1.0	≥1.0	0.60	37	≈300
YC-0.75 （2-leaf） Effectve waterfiow:50m	0.75	1	220	≥1.25	≥1.6	1.25	80	185
YC-0.75（2-leaf） Effective waterfiow:50m	0.75	1	380	≥1.25	≥1.9	1.25	80	185
YC-0.75（4-leaf） Efective water fiow:50m	0.75	1	380	≥1.25	2.3-2.6	1.60	80	185
YC-1.5 （4-leaf） Effective water fiow:55m	1.5	2	220	≥1.25	2.6-2.9	2.45	100	133
YC-1.5 （4-leaf） Effective water fiow:55m	1.5	2	380	≥1.25	2.8-3.1	2.45	100	133
YC-1.5 （6-leaf） Effective water fiow:60m	1.5	3	380	≥1.5	3.6-3.8	2.60	120	66
YC-2.2（8~10-leaf） Effective waterflow:65m	2.2	3	380	≥1.5	4.0-4.3	2.80	125	63
YC-2.2（12-leaf） Effective water flow:70r	3	3.5	380	≥1.5	4.3-4.6	3.0	135	60
YC-3.0（14-leaf） Effective water flow:75m	3	4	380	≥1.65	4.7-5.1	5.3	187	57
YC-3.0（16-leaf） Effective water flow:80m	3	4	380	≥1.65	5.3-5.6	5.3	192	54
