Product Description
Detail display

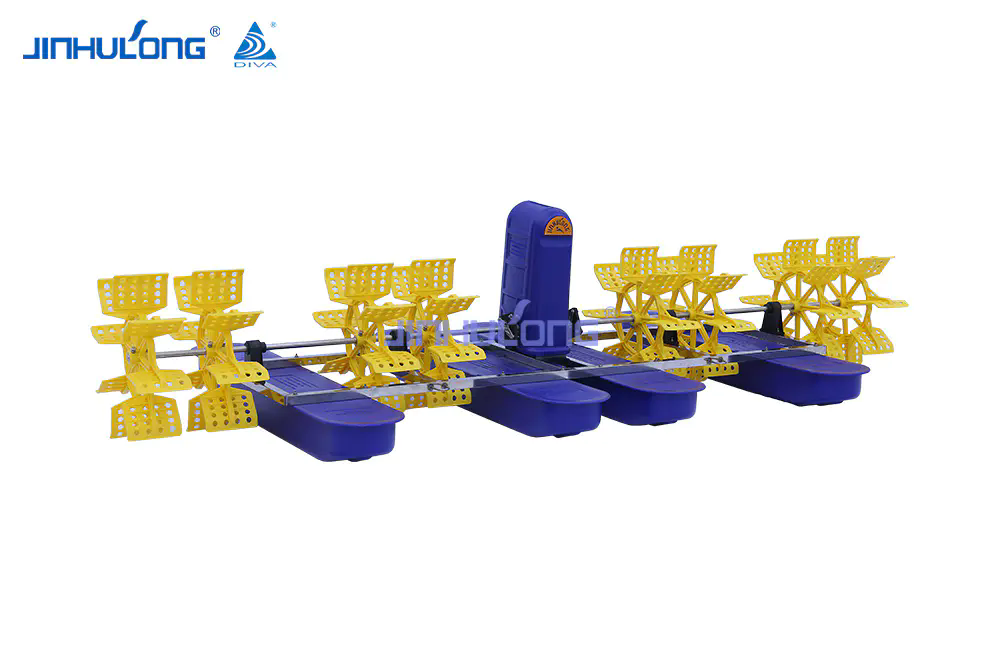

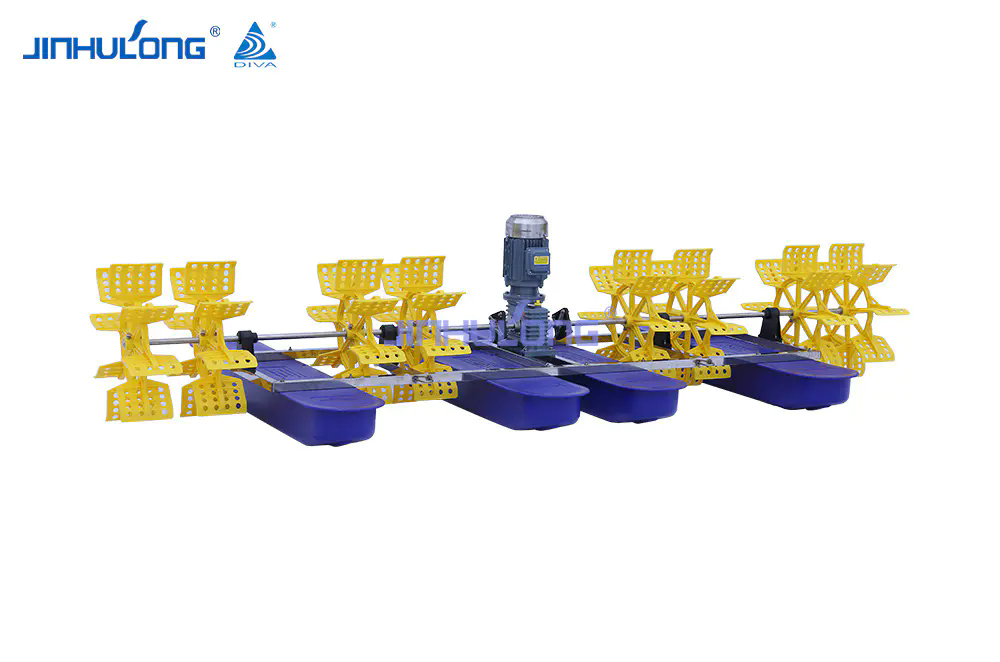

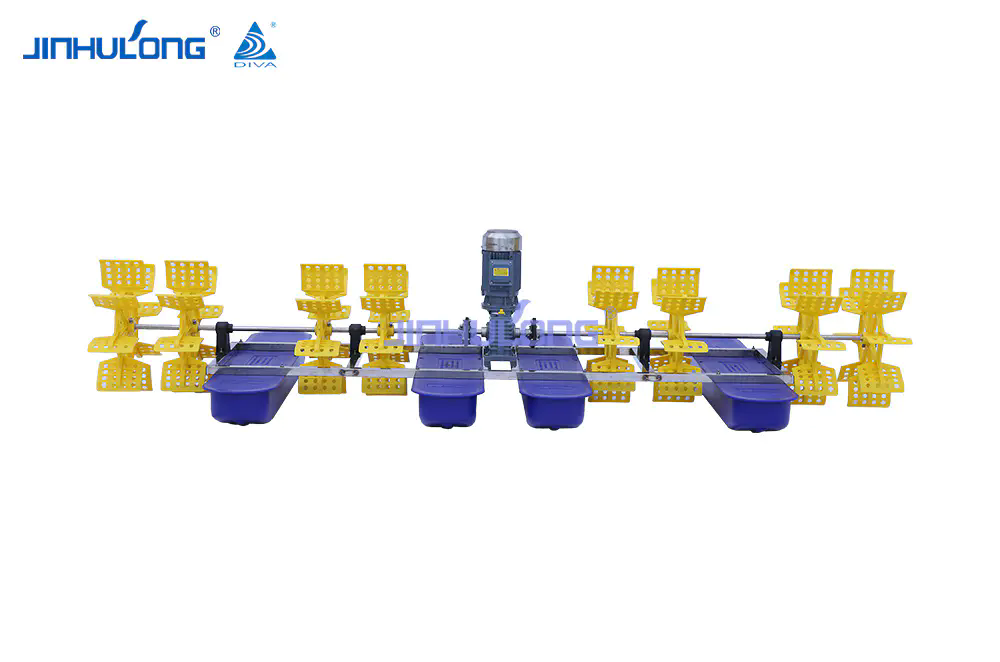

This Eight-Impeller Paddle Wheel Aerator uses four sets of impellers to rotate. Different from traditional motor cooling methods, Jinhulong's motors are made quality materials, small in size, with simple and beautiful appearance, and also durable. The stainless steel bracket is thickened, which is stable, durable, anti-corrosion and rust-proof.
|
Model |
Power | Voltage V/50Hz |
Power efficiency (kg/kW.h) |
DO (kg/hr) |
AMP (A) |
Weight (kg） |
40 Container set |
|
| kW | Hp | |||||||
| YC-0.30（Small 2-leaf） Effectve water flow:30m |
0.3 | 0.5 | 220-380 | ≥1.0 | ≥1.0 | 0.60 | 37 | ≈300 |
| YC-0.75 （2-leaf） Effectve waterfiow:50m |
0.75 | 1 | 220 | ≥1.25 | ≥1.6 | 1.25 | 80 | 185 |
| YC-0.75（2-leaf） Effective waterfiow:50m |
0.75 | 1 | 380 | ≥1.25 | ≥1.9 | 1.25 | 80 | 185 |
| YC-0.75（4-leaf） Efective water fiow:50m |
0.75 | 1 | 380 | ≥1.25 | 2.3-2.6 | 1.60 | 80 | 185 |
| YC-1.5 （4-leaf） Effective water fiow:55m |
1.5 | 2 | 220 | ≥1.25 | 2.6-2.9 | 2.45 | 100 | 133 |
| YC-1.5 （4-leaf） Effective water fiow:55m |
1.5 | 2 | 380 | ≥1.25 | 2.8-3.1 | 2.45 | 100 | 133 |
| YC-1.5 （6-leaf） Effective water fiow:60m |
1.5 | 3 | 380 | ≥1.5 | 3.6-3.8 | 2.60 | 120 | 66 |
| YC-2.2（8~10-leaf） Effective waterflow:65m |
2.2 | 3 | 380 | ≥1.5 | 4.0-4.3 | 2.80 | 125 | 63 |
| YC-2.2（12-leaf） Effective water flow:70r |
3 | 3.5 | 380 | ≥1.5 | 4.3-4.6 | 3.0 | 135 | 60 |
| YC-3.0（14-leaf） Effective water flow:75m |
3 | 4 | 380 | ≥1.65 | 4.7-5.1 | 5.3 | 187 | 57 |
| YC-3.0（16-leaf） Effective water flow:80m |
3 | 4 | 380 | ≥1.65 | 5.3-5.6 | 5.3 | 192 | 54 |
Keyword:
Eight-Impeller Paddle Wheel Aerator
