Product Description

Detail display

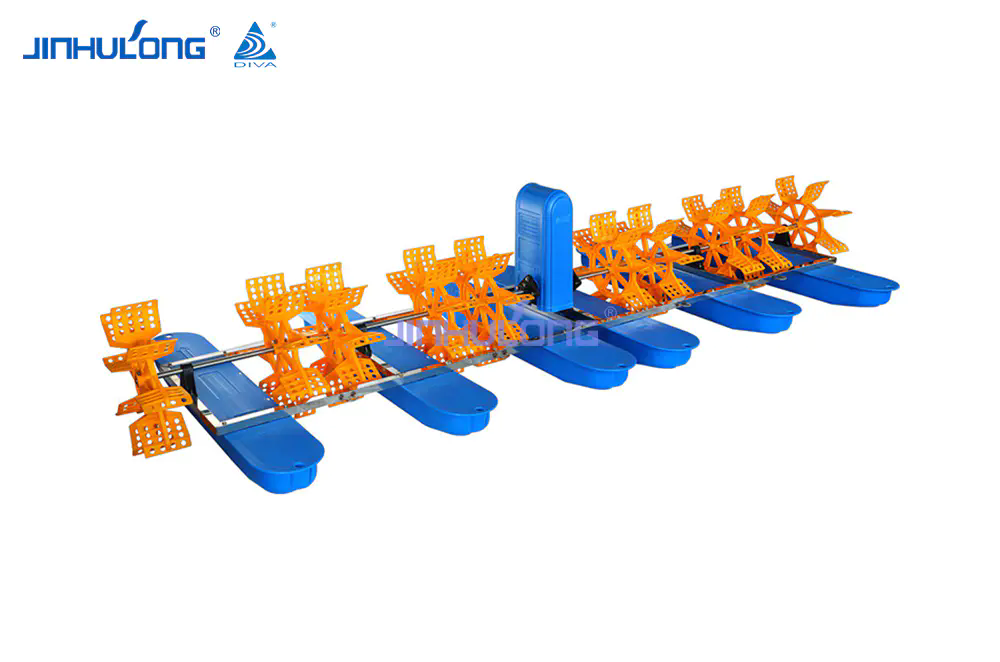

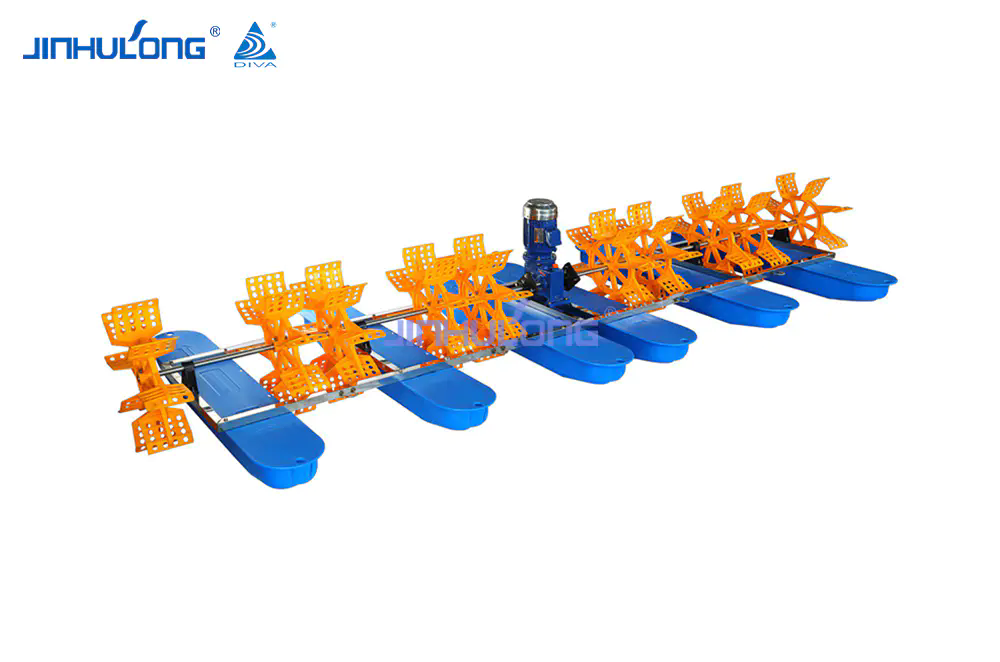

This Ten-Impeller Paddle Wheel Aerator uses four sets of impellers to rotate. The motor uses an all-copper wire design. The high-quality material of motor is more resistant to high temperature than traditional motors, and it is easier to dissipate heat, which makes the machine performance stable while reducing noise, making it sturdy and durable. The impeller, pontoon and waterproof cover are also made of high-quality materials, which are anti-wear and anti-corrosion, delicate and lightweight, and meet the needs of users.

Model	Power		Voltage V/50Hz	Power efficiency (kg/kW.h)	DO (kg/hr)	AMP (A)	Weight (kg）	40 Container set
Model	kW	Hp	Voltage V/50Hz	Power efficiency (kg/kW.h)	DO (kg/hr)	AMP (A)	Weight (kg）	40 Container set
YC-0.30（Small 2-leaf） Effectve water flow:30m	0.3	0.5	220-380	≥1.0	≥1.0	0.60	37	≈300
YC-0.75 （2-leaf） Effectve waterfiow:50m	0.75	1	220	≥1.25	≥1.6	1.25	80	185
YC-0.75（2-leaf） Effective waterfiow:50m	0.75	1	380	≥1.25	≥1.9	1.25	80	185
YC-0.75（4-leaf） Efective water fiow:50m	0.75	1	380	≥1.25	2.3-2.6	1.60	80	185
YC-1.5 （4-leaf） Effective water fiow:55m	1.5	2	220	≥1.25	2.6-2.9	2.45	100	133
YC-1.5 （4-leaf） Effective water fiow:55m	1.5	2	380	≥1.25	2.8-3.1	2.45	100	133
YC-1.5 （6-leaf） Effective water fiow:60m	1.5	3	380	≥1.5	3.6-3.8	2.60	120	66
YC-2.2（8~10-leaf） Effective waterflow:65m	2.2	3	380	≥1.5	4.0-4.3	2.80	125	63
YC-2.2（12-leaf） Effective water flow:70r	3	3.5	380	≥1.5	4.3-4.6	3.0	135	60
YC-3.0（14-leaf） Effective water flow:75m	3	4	380	≥1.65	4.7-5.1	5.3	187	57
YC-3.0（16-leaf） Effective water flow:80m	3	4	380	≥1.65	5.3-5.6	5.3	192	54
